HEATED, CHILLED AND FREEZER
CONTAINERS |
|
IMAGE |
CODE |
DESCRIPTION |
Temperature range |
External Dimensions (mm) |
Capacity (lt.) |
COMMENTS |
 |
3B3H0008 |
Heated front loader
7 runners, 220V
Optional
transport dolly.
|
above 65ºC |
440x640x480h |
63 |
For meals on wheels operations or similar - Up to 40 meals capacity in standard
foils. |
 |

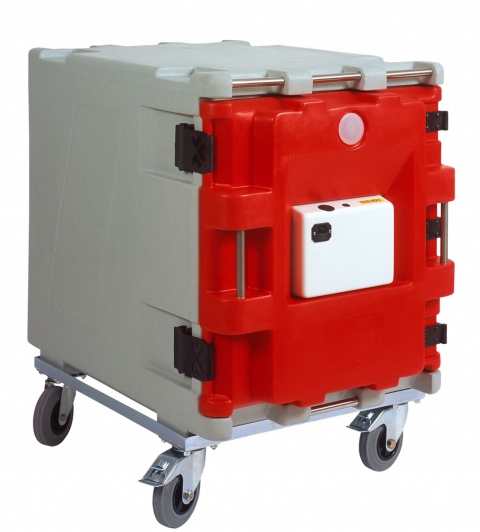

3B3O0008 |
Heated front loader
no runners, 220V supply
Can be fitted with optional
stainless steel runners to take 600x400 baking trays or gastronorms (see below
under "Accessories" ABA200 and ABA302)
|
above 65ºC |
570x910x725h |
148 |
Takes 600x400 tote boxes
stacked.
For any
extended time food transport. Optional dolly.
Also available as "double decker"
cart on wheels with one or both units optionally heated. |
 |
3B3M0008 |
Heated front loader 12 runners, 220V supply |
above 65ºC |
440x665x650h |
89 |
Gastronorm size, 500mm high, will take 5 x GN 1/1 h
100 or combinations. Also
available as "double decker" cart on wheels with one or both units optionally
heated. |
 |
3AF89001 |
K 70
Refrigerated front loader, 8 runners |
0ºC to +10ºC |
440x760x480h |
68 |
Suitable for
12V, 24V DC or 220V AC mains supply |
 |

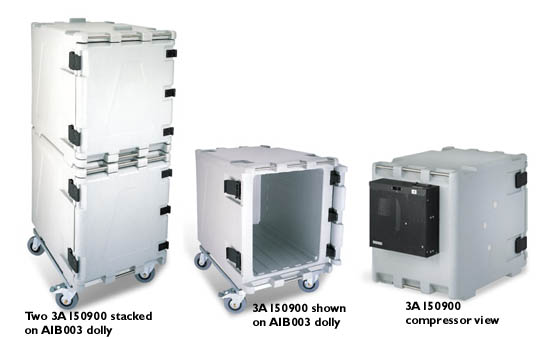

3A150900 |
K 150
Refrigerated front loader no runners |
0ºC to +10ºC |
570x910x725h |
148 |
12V, 24V or mains supply - takes 600 x 400 tote boxes |
 |
39AC9001 |

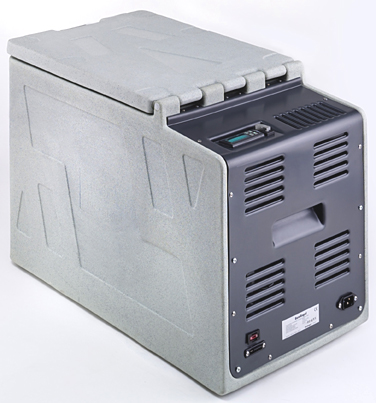

k20
Top loading freezer
12V, 24V or mains supply, can also be used in chill mode. |
+3ºC to -18ºC |
345x515x425h |
21 |

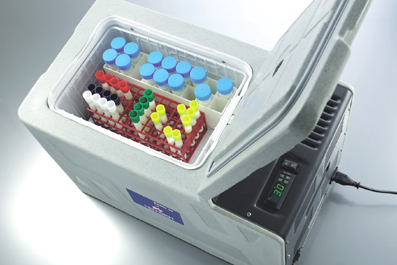

Especially suited to transportation of frozen
samples, food industry, laboratories etc. |
 |
39AA6001 |
k32
Top loading freezer
12V, 24V or mains supply, can also be used in chill mode. |
+3ºC to -18ºC |
360x620x400h |
27 |
Can also be supplied on request with temperature
ranges of:
+3ºC to -25ºC
-18ºC to
+50ºC
and with
optional high/low temperature alarm. |
 |
39AC7001 |
K50
Top loading freezer
12V, 24V or mains supply, can also be used in chill mode. |
+3ºC to -18ºC |
495x800x500h |
53 |
Can also be supplied on request with temperature
ranges of:
+3ºC to -25ºC
-18ºC to
+50ºC
and with
optional high/low temperature alarm. |
|
39AA8001 |
K80
Top loading freezer
12V, 24V or mains supply, can also be used in chill mode. |
+3ºC to -18ºC |
560x940x550h |
73 |
Can also be supplied on request with temperature
ranges of:
+3ºC to -25ºC |
 |

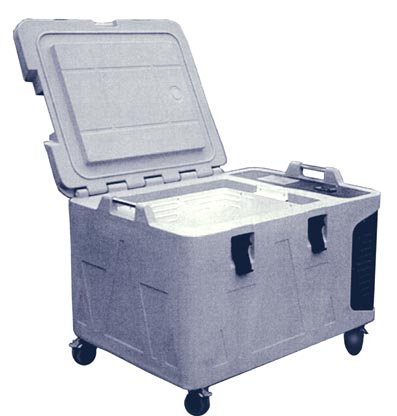

39AB6001 |
K160
Top loading freezer
12V, 24V or mains supply, can also be used in chill mode. |
+3ºC to -18ºC |
1110x790x650h |
162 |
Optional swivel castor kit (2 with brakes). |
|
Accessories |
 |
THS20006 |
Moulded dolly for 3B3H0008, 2 fixed and 2 swivel
castors. Fits heated container above and insulated version. |
 |
THS30006 |
Moulded dolly for 3B3O0008, 2 fixed and 2 swivel
castors. Fits heated container above and insulated version. |
 |
AIB003 |
Zinc coated dolly for K150 -
Will support two units stacked |
| |
AHA003 |
10A AC DC power pack -
To power 12V supply heated units from mains |
|
AHB005 |
Cigar lighter cable for 3B3H -
For in-vehicle powering of Heated containers |
|
AHB006 |
Power pack cable for 3B3H -
To connect Heated units to power pack |
|
AHA006 |
6 point AC DC power pack -
To power up to 6 Heated units from mains |
|
A29890 |
Melamine Gastronorm shelf for 1/1 front loader -
Slide on moulded runners |
|
AR1070 |
Castor kit for K160, 4 swivel, 2 braked |
 |
ABA200 |
Supporting frame for runners for K150 or 3B3O - s/steel -
For 600 x 400 trays or Euronorm |
|
ABA302 |
Set of 2 runners for K150 or 3B3O - stainless steel -
For 600 x 400 trays or Euronorm |
